    CE Certification High Purity QL-150 Pem Cell Hydrogen Generator Lab FID GC

    Ask Lasest Price
    Brand Name : SUCCESS
    Model Number : QL-150
    Price : $1,000.00/sets 1-4 sets
    • Product Details
    • Company Profile

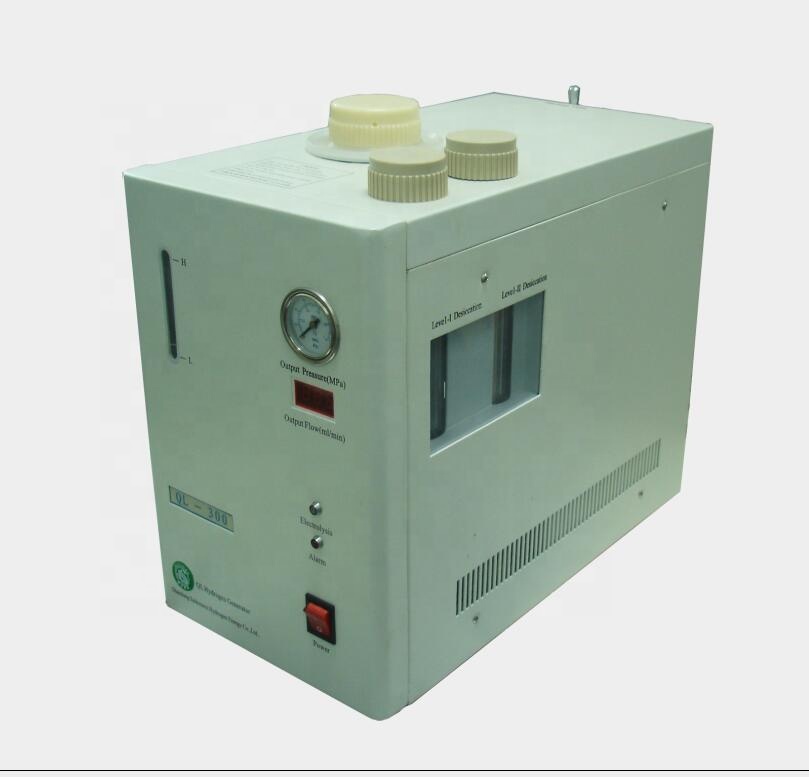

    CE Certification High Purity QL-150 Pem Cell Hydrogen Generator Lab FID GC

    CE Certification High Purity QL-150 PEM Hydrogen Generator for Lab Usage in FID GC

    QL-150 HYDROGEN GENERATOR FOR FID OF GC USAGE

    The series of products, producing highly pure hydrogen gas by utilizing SPE technology to electrolyze pure water (no adding alkali), are light highly effective, energy-saving and environmental protection.


    Specifications:

    1. 0~150 ml/min flow hydrogen generator

    2. H2 purity :99.999%

    3. PEM technology .

    4. CE certification. Own patent right.

    Technical Parameter:

    TypeQL-150
    Output Volume (ml/min)0~150

    Output Pressure (MPa)

    0.02~0.4

    Pluctuation Rate of Output Pressure(%)

    <0.2

    H2 purity (%)

    >99.999

    Second Protective Pressure (MPa)

    0.42

    Power Voltage (V)

    220±15% 110±15% 50~60Hz

    Input power (W)

    <150

    Dimension (LxWxH) mm

    431x228x343

    Gross Weight (KG)

    < 15


    Structural characteristics of the Products:

    • Distance between anode and cathode is close to zero, and highly active SPE catalytic electrodes are used.
    • Plural-electrode and multiunit electrolysis cell structure with excellent chemical technological process properties of the mass and heat transfer.
    • Best choice of materials for multi-electrode and pluralist electrolysis cell with excellent properties of electrochemistry, anti-corrosion and bearing deactivation.

    Functions and Characteristics of the Products:

    • Electrolysis of pure water (adding no alkali) to produce hydrogen with no corrosion and pollution, and the purity of hydrogen is extremely high.
    • Voltage of unit cell is low, and electric resistance in the electrolysis cell is little, giving out no heat, and cycle of changing desiccants is long, producing highly pure hydrogen.
    • With stable pressure and output, Hydrogen is controlled according to the requirements, and automatic control technology is perfect and reliable.
    • Power consumption is less, and the electrolysis is efficient.

    Applied Area:

    • The small-sized products (QL-150/300/500) are ideal equipment for gas chromatographs and optical fiber sintering. The products can absolutely take the place of steel cylinders of hydrogen, and can be used safely and conveniently.
    • Used for fuel cell.
    • Supply hydrogen for metal hydride.
    • Others application: reduction protection ,purification of materials , Metal welding and smelting, fire fiber optic, surface protection , Used for cars or truck.
